EEVblog BM786 Multimeter

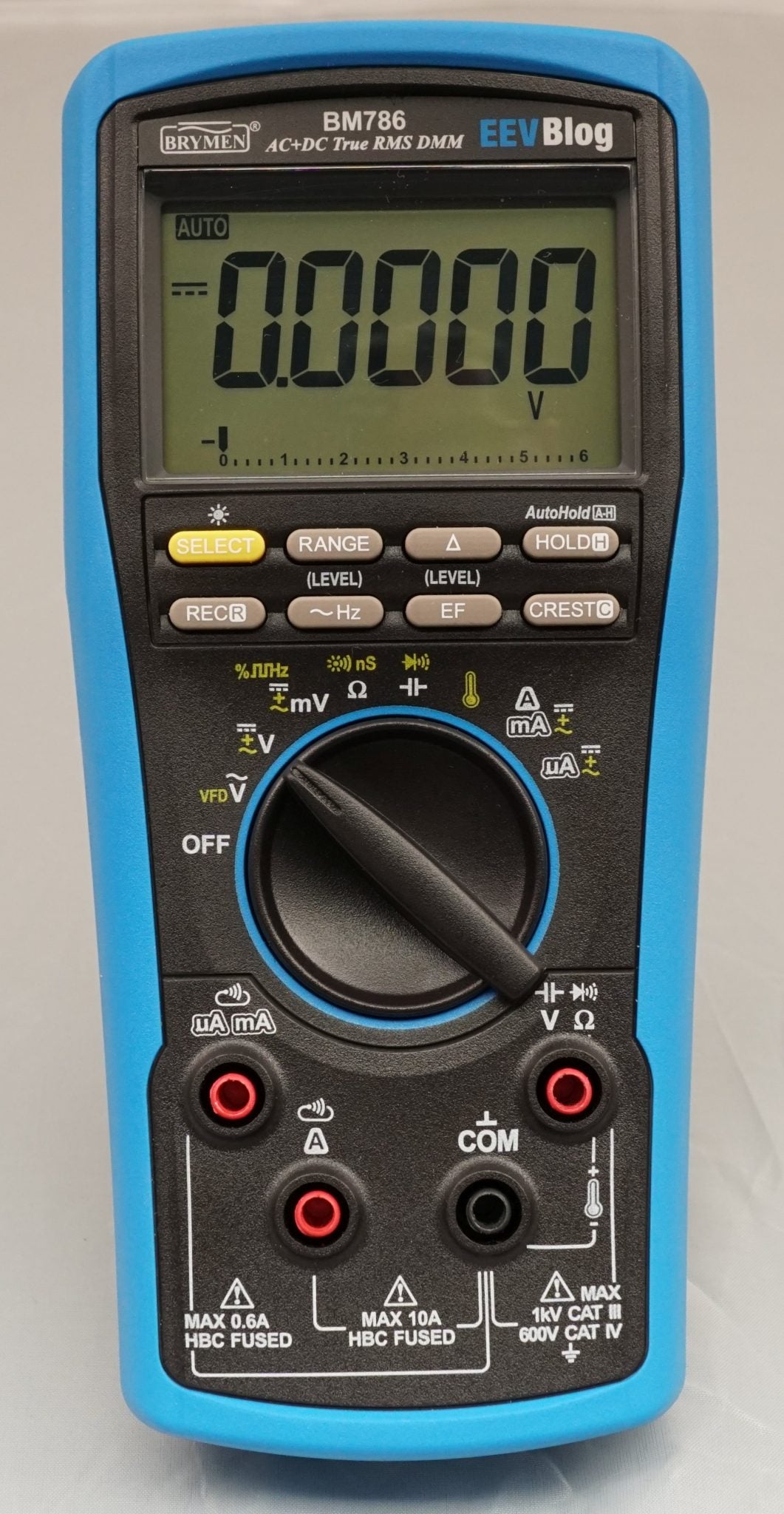

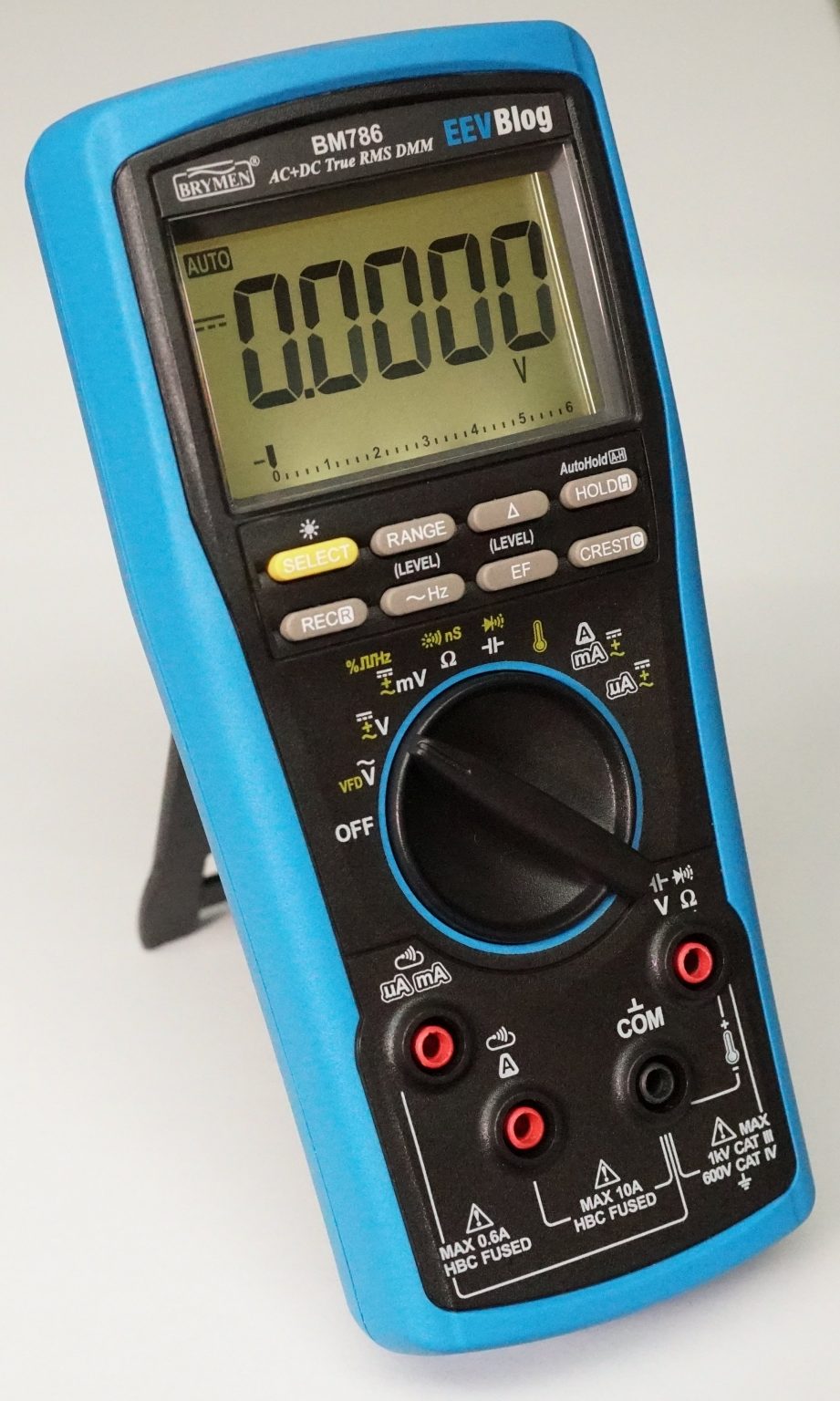

The Brymen BM786 EEVblog branded multimeter is a high quality 60,000 count 600V CAT IV rated electronics/electrical multimeter with exceptional accuracy and special edition blue over-moulded rugged case.

Description

The Brymen BM786 EEVblog branded 60,000 count 0.03% DC class precision multimeter with special edition blue holster. The BM786 model is EXCLUSIVE to the EEVBlog. This is a fantastic high quality multimeter that is bigger and higher rated (600V CAT IV) than the classic BM235. Housed in a rugged drop proof over-moulded case similar to the Fluke 70 series of which it is a direct competitor, but has better accuracy, higher resolution, and feature set for both electrical and electronics design work.

Included are:

• High quality silicone test leads, not the usual standard quality supplied with other Brymen meters.
  These have high flexibility conductors, silicone insulation, sharp gold plated points and threaded neck for the included 4mm banana plug attachments to screw in.
• K-Type thermocouple probe
• Batteries (3xAAA) included


Download the latest manual on this page as a printed manual is not included.

Highlight Features

• Exceptional 0.03% DCV, 0.085% Ohms, and 0.075% DC Amps class accuracy
• Multi level non-contact Electric Field testing
• 350us Crest mode
• AutoHold probe function for hands free reading
• Incredibly fast autoranging
• Fast non-latched visual continuity tester
• 31 segment bargraph display with 50/sec updating

Additional information

Weight - 0.58 kg

Dimensions - 20 x 12 x 6 cm

Accessories

Probes

11A HRC Fuses

400mA HRC Fuses

Replacement battery door

Documentation

User Manual and Specification

There is no printed manual included with the multimeter.
